Launch X431 V 5.0 (X431 Pro) 8inch Wifi/Bluetooth Bidirectional Full System Diagnostic Scanner Supports CAN FD DOIP, VAG Guide

[EU/UK Version] Launch X431 V 5.0 (X431 Pro) 8inch Wifi/Bluetooth Bidirectional Full System  Diagnostic Scanner Supports CAN FD DOIP, VAG Guide

Launch X431 PRO V V5.0 8″ with 2 years free update on the official site. It communicates with your car by connecting DBSCAR with Bluetooth. it achieves the X431 series full car model and full-system diagnose function.
X-431 V is a new 10.0 Android-based vehicle trouble diagnostic device developed for internet applications. it inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test results.

Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, is achieves X-431 series full car model and and full system vehicle trouble diagnostic which includes Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test, and Special Functions.

Top 15 Reasons to Choose LAUNCH X431 PRO V V5.0 8 inch:

1. Communication: Support Wifi and Bluetooth.
2. More Convenient: Global Version, No IP and language limitation.
3. Brand PAD: 8″ inch capacitive touchscreen Lenovo PAD, fast running speed .
4. One-Click Update: 2 Years Free Update Online (Global version) on tablet by one-click, more efficient and convenient.
5. Powerful & Professional Functions: Support Full System Diagnosis + 11 Special Functions
6. Remote Diagnosis: LAUNCH technician can provide remote help when you got problem during testing.
7. Diagnostic Feedback: Support to feedback your diagnostic problems to LAUNCH for analysis troubleshooting.
8. Wireless Printer Connection: Designed to establish a wireless connection between X-431 V V5.0 and the Wi-Fi Printer (sold separately).
9. Special Design: X431 V V5.0 Pad computer equipped with an exclusive X-431 V protection sleeve to prevent it from being damaged.
10. Multi-Languages: English, German, Japanese, Russian, French, Korean, Arabic, Spanish, Italian, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Persian, Romanian, Serbian, Finnish, Swedish and Czech.
11. Vehicle Coverage: Works on all vehicles domestic & import since 1996, up to 72 car brands about 220 car models from European, USA Asian, Australian, Indian and Malaysia Car Models.
12. Entertainment-savvy Tablet: Built-in Wi-Fi module makes surfing on the internet free. Android-based applications can be customized to install or uninstall
13. New Designed DBScar Connector:  Bigger Bluetooth adapter with LED indicator, Bluetooth distance: 10M (Without Obstacle); Higher quality chip, Long service life; Support repaired, save more money.
14. Support Bi-directional Control & Actuation Test: for example, turning on and off the a/c clutch, fuel pump, purge control solenoid ect. It is a professional DIY automotive tool for mechanics.
15.  Launch X-431 PRO = LAUNCH V 5.0, it support expand the IMMO function with XPROG-3 GIII Key Matching + IMMO license.

X431 PRO V V5.0 Level-up Hardware:

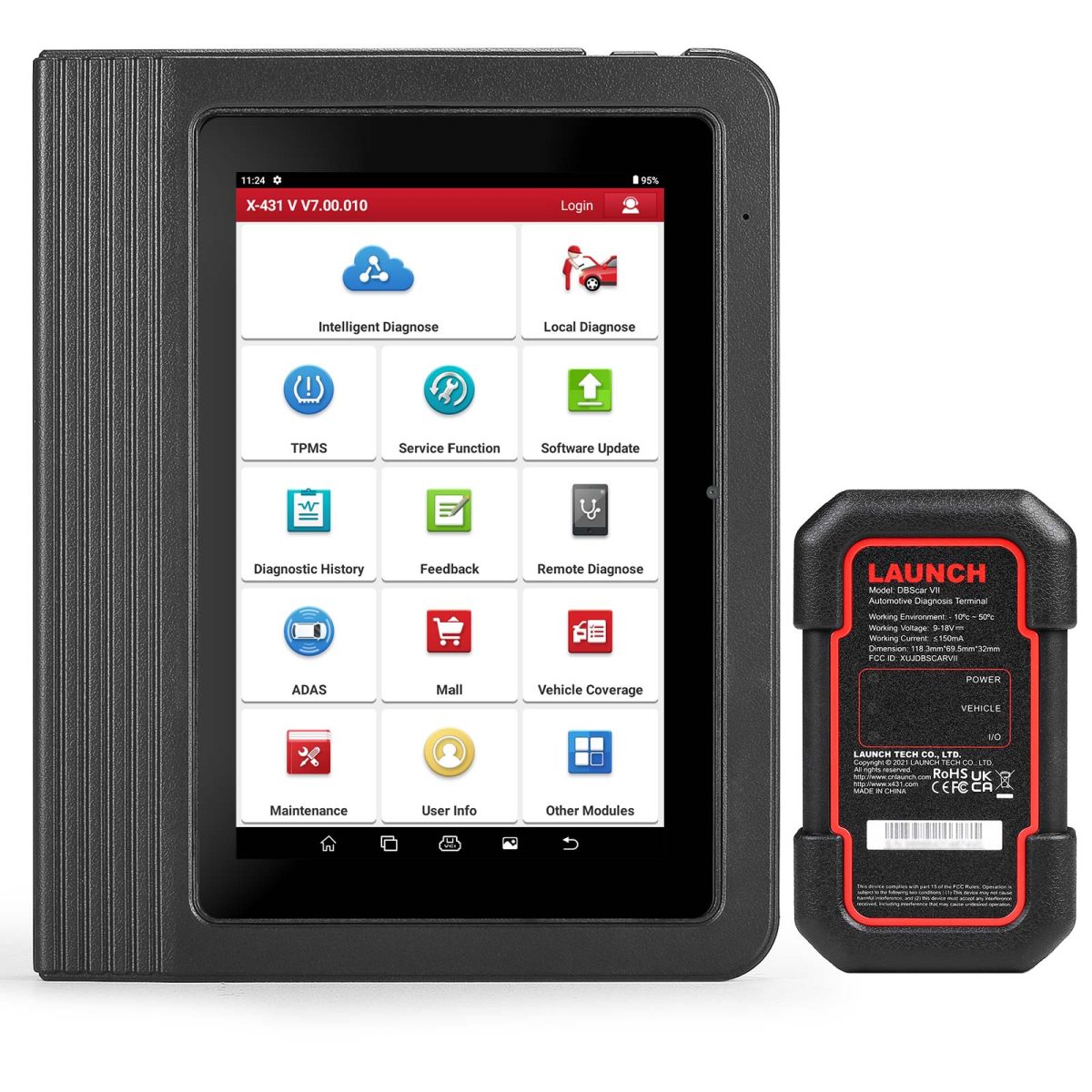

Upgraded New DBSCAR VII Bluetooth VCI, 10X Faster diagnosis speed + 10X Faster live data refresh rate.
Android 10.0 Smooth Operate, 6300mAh Battery, 4+64GB Memory.

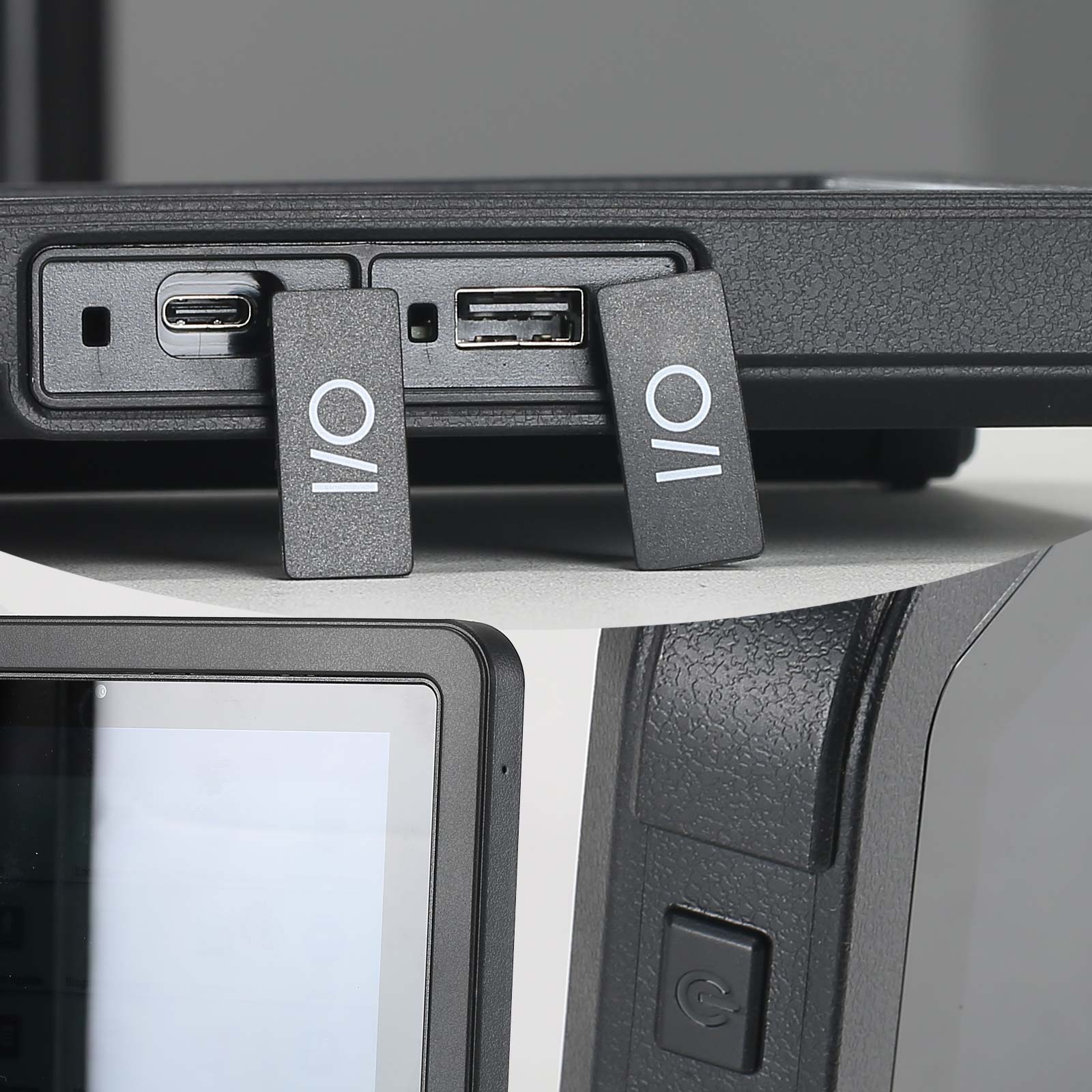

Type A & TYPE C. Effortlessly charge your devices even with your phone’s charger.
Dual Camera, Dual Wifi, Global Version, NO IP Limitation.
Support 98% Vehicles in the world
Full Set OBD1 Adapters (12pcs) included

LAUNCH X431 PRO(V 5.0) Support Extension Modules:
(So that you can perform more comprehensive vehicle inspections with LAUNCH X431 V, NEED TO PURCHASE EXTRA)
ADAS Activation Card (Before expand X431 ADAS Moblie/ ADAS PRO feature, please activate this first)
XPROG-3 GIII Key Matching + IMMO license (IMMO functions just like IMMO plus)
Key programmer
LAUNCH PC Adapter
LAUNCH Motorcycle Diagnostic Connector Kit
X431 TSGUN or Launch X431 i-TPMS (Activate all sensors, tpms relearn, program only Launch Sensors)
BST360 battery tester (Test Your Battery with Accuracy and Simplicity)
VSP600 Videoscope
LAUNCH X431 O2-2 Oscilloscope Scopebox
LAUNCH X-431 Sensorbox S2-2    YES
LAUNCH Non-16 Pin Adaptor Kit

LAUNCH X431 PRO V V5.0 Functions:

1. All-in-one System Diagnostic Tool-Launch X431 PRO V V5.0

1) Full Diagnose Function: X431 V V5.0 can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American. Full range car models and Full car systome diagnose make it a professional automotive diagnostic tool
2) Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special Funtion etc.
3) Bidirectional control: Bi-Directional Control which is used to request information or command a module to perform specific tests and functions
4) Actuation Test: it can send information to and receive information from a vehicles control module.
5) Remote Assistance: launch x431 v support remote diagnosis, if you need help from other mechanic, open the remote control function.
6) Diagnostic Report Print: x431 v can automatically generate a diagnostic report when diagnostic work is successfully finished.Generated diagnostic report will be saved and sent to the email box then print the report on PC.

2. Special Functions:

1) Oil Reset Service: reset service mileage and service interval
This function can be performed in the following cases:
* If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
* After changing engine oil or electric appliances that monitor oil life, you need to reset the service lamp.

2) Steering Angle Calibration: perform calibration for the Steering Angle Sensor
* To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
* After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

3) Electronic Parking Brake Reset: When the brake pad is used to a certain thickness, it will be ground to the brake pad sensing line. At this time, the brake pad sensing wire will send a signal to the onboard computer, prompting to replace the brake pad. After replacing the brake pads, you need to reset the brake pads, otherwise the car will continue to alarm.
* If the brake pad wears the brake pad sense line, the brake pad sense linesends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
* Reset must be performed in the following cases:
The brake pad and brake pad wear sensor are replaced.
The brake pad indicator lamp is on.
The brake pad sensor circuit is short, which is recovered.
The servo motor is replaced.

4 ) Battery Register / Battery Maintenance: reset battery management system
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:

5) ABS Bleeding:When the ABS system contains air, it is necessary to exhaust the brake system through the ABS exhaust function, thereby restoring the sensitivity of the ABS system brake.
This function allows you to perform various bi-directional tests to check the operating conditions of Anti- lock Braking System (ABS).
* When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
* If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line , or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6) Electronic Throttle Position Reset / Learn: ensure communication with ECU after replacement
This function enables you to initialize the throttle actuators so that the “learned” values ​​stored on ECU are returned to the default state.
Doing so can accurately regulate throttle (or idle engine) operations to control the amount of air intake. Throttle matching must be performed in the following cases:
A) The ECU is replaced and the ECU does not yet store throttle working features.
B) The ECU is disconnected from power and the ECU memory is lost.
C) The throttle assembly is replaced.
D) The intake pipe is replaced or removed, which affects idle speed control by ECU and throttle body.
E) The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged, with the same throttle opening, the air inflow has changed and idle speed control features have changed.

7) Diesel Particulate Filter (DPF) Regeneration: supports forced DPF regeneration and adjusting injectors
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
A) The exhaust back pressure sensor is replaced.
B) The PM trap is removed or replaced.
C) The fuel additive nozzle is removed or replaced.
D) The catalytic oxidizer is removed or replaced.
E) The DPF regeneration MIL is on and maintenance is performed.
F) The DPF regeneration control module is rep
G) Tire Pressure Monitor System Reset

8) Tire Pressure Monitor System Reset: This function is used to reset the tire pressure sensor. When the car tire air pressure fault indicator is on, after the repair, the tire pressure system needs to be reset by the tire pressure reset function, and the tire pressure fault indicator is extinguished.

9) Gear Learning:The crankshaft position sensor adaptive learning, the crankshaft position sensor learns the machining error of the crankshaft teeth, and stores it in the computer to more accurately diagnose the engine misfire.

10) Fuel Injector Coding: This function can write the actual code of the injector or rewrite the code stored in the ECU into the code corresponding to each cylinder nozzle, so as to more accurately control or correct the fuel injection amount of each cylinder.

3. Supported Car Models:

1) European
For ABARTH, For ROMEO, For AUDI, For BMW, For CITROEN, For DACIA, For FERRARI, For FIAT,For FORD(EUR),For GAZ, For JAGUAR,For LANCIA, For
LANDROVER, For MASERATI, For MAYBACH, For MERCEDES, For OPEL, For OPEL(SA), For PEUGEOT, For PORSCHE, For RENAULT, For ROLLS-ROYCE, For ROVER, For SAAB, For SEAT, For SKODA, For SMART, For SPRINTER, For VAZ, For VOLVO, For VW

2) America
For CHRYSLER, For FIAT(BRA), For FORD, For FORD(AUS), For GM, For GM(BRA), For HOLDEN

3) Asian
For ACURA, For DAEWOO , For DAIHATSU, For HM, For HONDA, For HYUNDAI, For INFINITI, For ISUZU, For ISUZU(THAILAND), For KIA, For LEXUS, For LUXGEN, For MAHINRA, For MARUTI, For MAZDA, For MITSUBISHI,For NISSAN, For PERODUA, For PROTON,For SSANGYONG, For SUBARU, For SUZUKI, For
TATA, For TOYOTA

4) Chinese
For BYD, For CHANGAN, For CHANGHE, For JIAO, For GREAT, For WALL, For HAFEI,For JAC, For JINLONG, For ISUZU, For LIUWEI_TY, For QIRUI_TY, For TIANJIN, For FAW, For XINKAI, For ZHONGSHUN, For ZHONGTAI , For ZHONGXING

5) Other Vehicle Models:
Russia car models: GAZ, VAZ
Brazil car models: FIAT, GM
Malaysia car models: PERODUA(PERODUA), PROTON
IRAN car models: IKCO, MVM
India car models: TATA, MARUTI, MAHINDRA

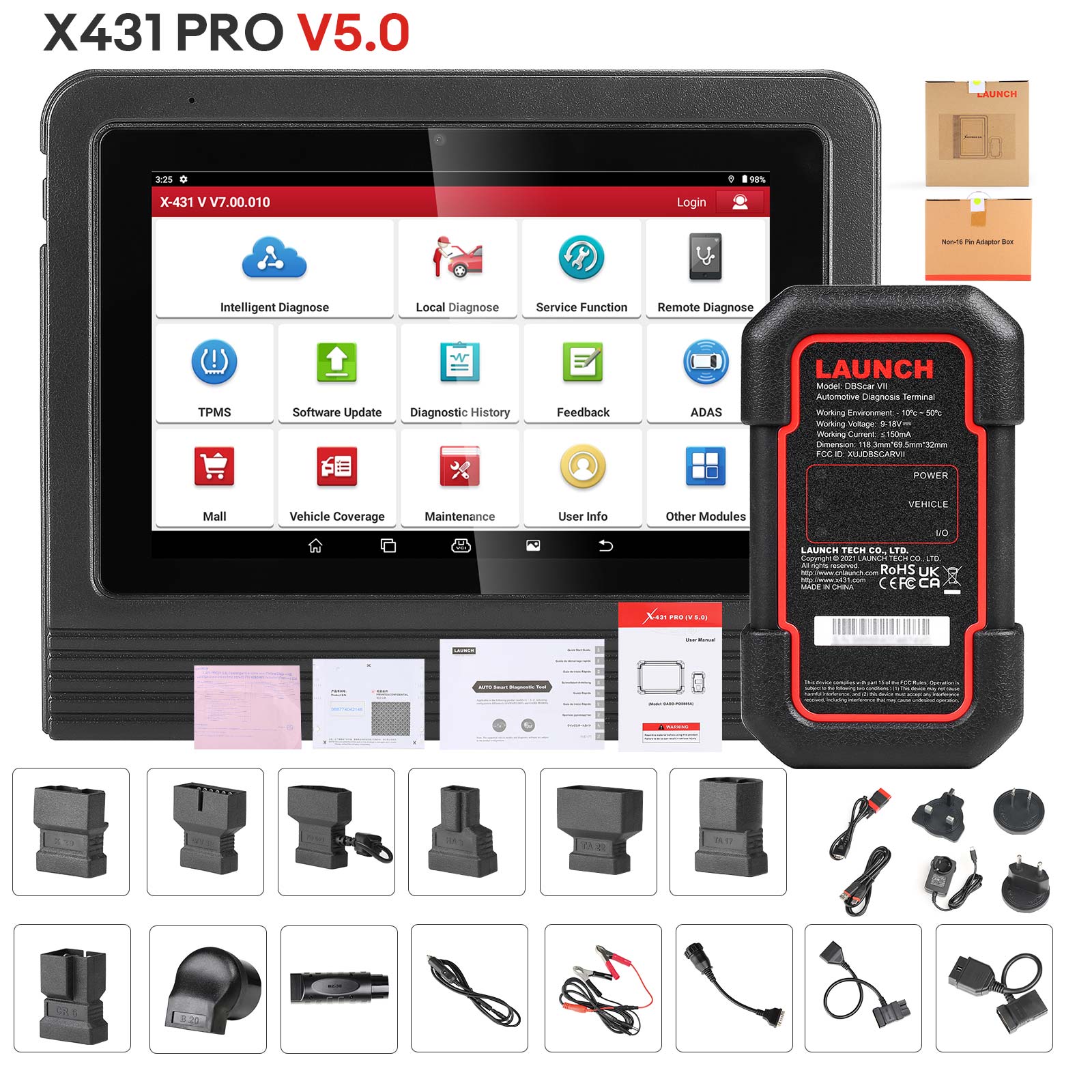

Packing List:

1 set x Launch X431 V 5.0
