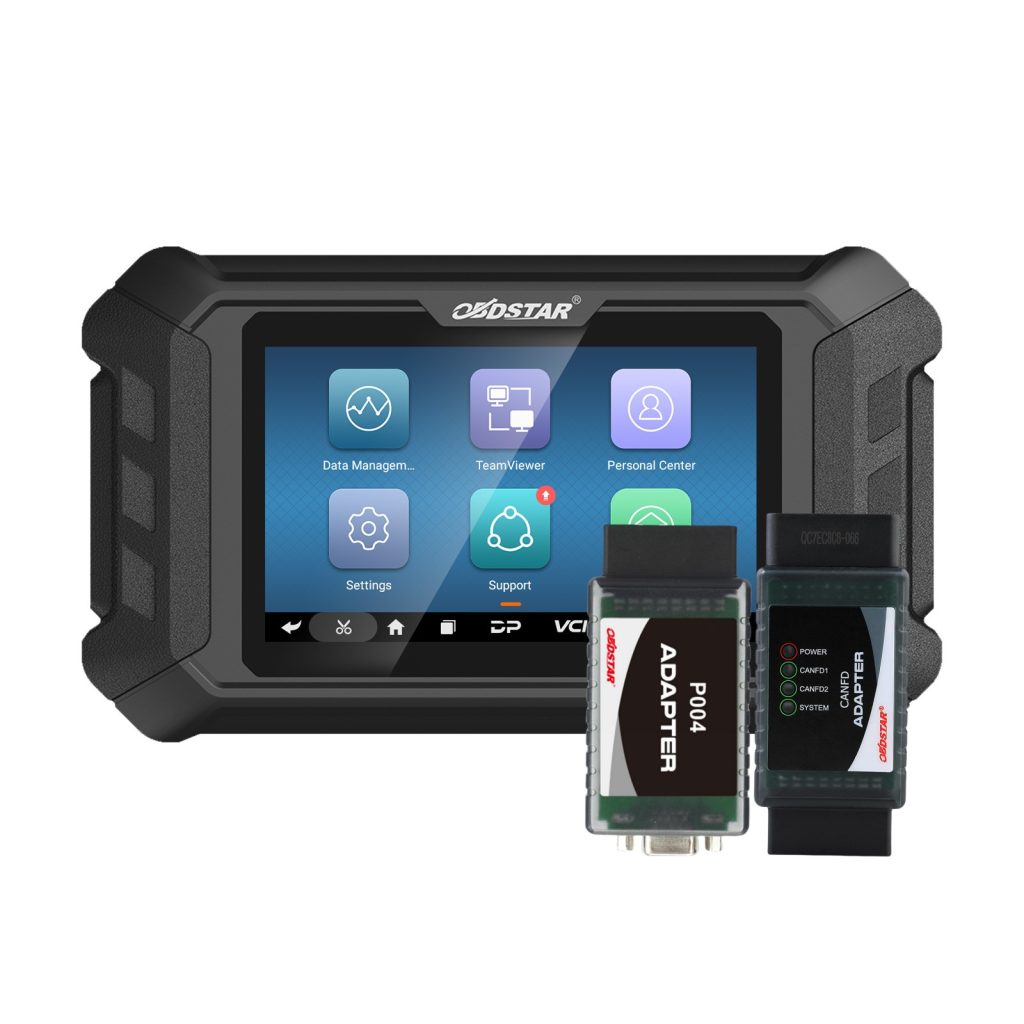

OBDSTAR DC706 ECU Tool Basic Version for Car and Motorcycle ECM/ TCM/ BODY ECU Cloning by OBD or Bench mode
OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery… It’s all by OBD or bench mode and makes ECU cloning easy.
Product Function:
Single Software only,Three standard versions for selection
3. Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO…)
Notice: Versions of DQ250 models before 2008 are not supported, and the protocols are different.
OBDSTAR DC706 Configurations
| Configuration | Software |
| DC706_ EN A | ECM |
| DC706_ EN_ B | TCM |
| DC706_ EN_ C | BODY |
| DC706_ EN D | ECM+TCM |
| DC706_ EN E | ECM+B0DY |
| DC706_ EN F | TCM+B0DY |
| DC706_ EN_ FULL | ECM+TCM+BODY |
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM…)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
Product Specifications:
| Operation system | Android 5.1.1 |
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 16GB |
| LCD | 7.0 inch |
| LCD resolution | 1024*600 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
| Storage temperature | -20℃~70℃ (-4℉~158℉) |
| Weight | About 1.3kg |
| Dimension | 243mm*148mm*36mm |
OBDSTAR DC706 ECU Tool + For TCM Clone
OBDSTAR DC706 ECU Tool + For Body/Other Clone
Package Includes:
1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
